Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth240mm
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V0kW
Degree of protection (IP), front sideIP20
Rated permanent current Iu400A
Rated operating voltage1000 - 1000V
Height129mm
Number of auxiliary contacts as normally closed contact2
Conditioned rated short-circuit current Iq0kA
Number of poles2
Width127mm
Number of switches1
InterlockableNo
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Suitable for distribution board installationNo
Version as main switchYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V0kW
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Colour control elementOther
Type of control elementOther
Suitable for intermediate mountingNo
Rated short-time withstand current lcw15kA
Suitable for front mounting centreNo
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Version as safety switchNo
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current at AC-23, 400 V0A
Rated permanent current at AC-21, 400 V0A
Voltage release optionalNo
Switching power at 400 V0kW
Suitable for front mounting 4-holeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

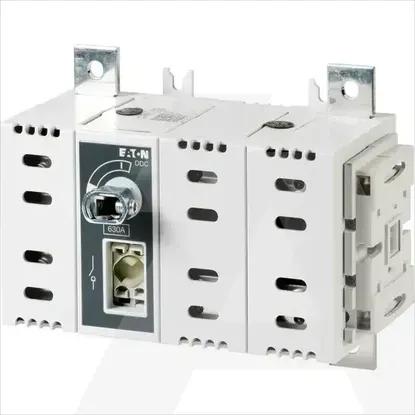

DDC-400/2-SK
