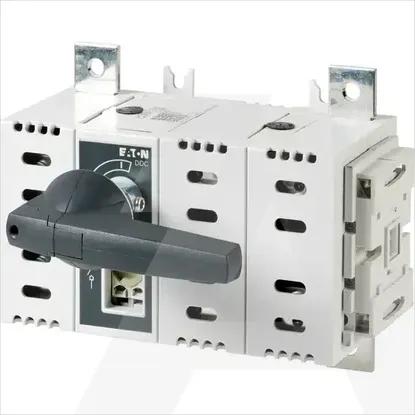

DDC-630/2
Code: 1634222
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Version as main switchYes
Version as reversing switchNo
Version as safety switchNo
Number of switches1
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC1000V
Rated operation power at AC-3, 400 V0kW
Number of poles2
Rated operation power at AC-23, 400 V0kW
Rated permanent current at AC-21, 400 V0A
Rated permanent current at AC-23, 400 V0A
Conditioned rated short-circuit current Iq0kA
Rated short-time withstand current lcw15kA
Switching power at 400 V0kW
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact2
Voltage release optionalNo
Suitable for floor mountingYes
Number of auxiliary contacts as normally closed contact2
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Motor drive integratedNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current Iu630A
Suitable for front mounting 4-holeNo
Colour control elementGrey
Type of control elementLong turning handle
Degree of protection (IP), front sideIP20
InterlockableYes
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
Height129mm
Width127mm
Depth240mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
