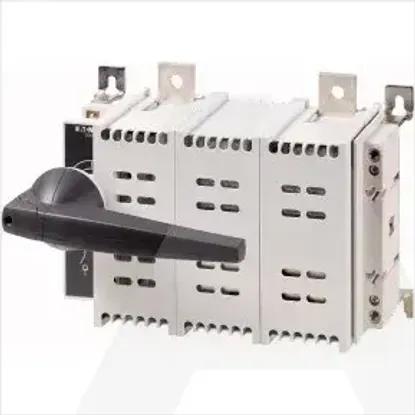

DDC-800/2
Code: 1634228
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Rated operating voltage1000 - 1000V
Version as main switchYes
Rated permanent current at AC-23, 400 V0A
Rated permanent current Iu800A
Max. rated operation voltage Ue AC1000V
Version as reversing switchNo
Version as safety switchNo
Voltage release optionalNo
Number of switches1
Rated short-time withstand current lcw25kA
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V0kW
Number of poles2
Switching power at 400 V0kW
Motor drive integratedNo
Conditioned rated short-circuit current Iq0kA
Rated permanent current at AC-21, 400 V0A
Rated operation power at AC-23, 400 V0kW
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as normally closed contact1
Suitable for floor mountingYes
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationNo
Device constructionBuilt-in device fixed built-in technique
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Number of auxiliary contacts as normally open contact1
Suitable for intermediate mountingNo
Colour control elementGrey
InterlockableYes
With pre-assembled cablingNo
Width230mm
Depth345mm
Height160mm
Degree of protection (IP), front sideIP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
