Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Degree of protection (IP), front sideIP20
Number of switches1
Conditioned rated short-circuit current Iq0kA
Width230mm
InterlockableYes
Depth345mm
Number of poles2
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Rated permanent current Iu800A
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact1
Height160mm
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Rated operation power at AC-23, 400 V0kW
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Suitable for front mounting 4-holeNo
Switching power at 400 V0kW
Colour control elementGrey
Suitable for floor mountingYes
Rated short-time withstand current lcw25kA
Suitable for intermediate mountingNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V0A
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V0A
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for front mounting centreNo
With pre-assembled cablingNo
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

DDC-800/2/M4/P-G

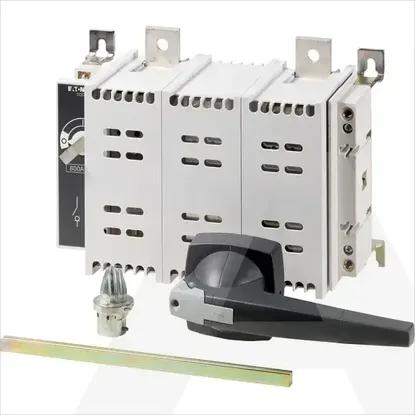

Main Product Image
