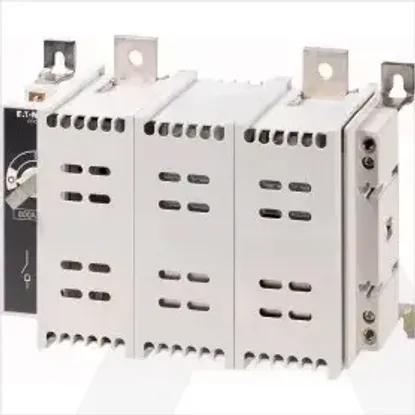

DDC-800/2-SK
Code: 1634230
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as emergency stop installationNo
Max. rated operation voltage Ue AC1000V
Version as safety switchNo
Rated operation power at AC-3, 400 V0kW
Version as main switchYes
Number of switches1
Rated permanent current Iu800A
Rated permanent current at AC-21, 400 V0A
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-23, 400 V0A
Rated operation power at AC-23, 400 V0kW
Number of auxiliary contacts as normally open contact1
Motor drive optionalNo
Motor drive integratedNo
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Conditioned rated short-circuit current Iq0kA
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Suitable for distribution board installationNo
Rated operating voltage690 - 690V
Switching power at 400 V0kW
Suitable for front mounting centreNo
Rated short-time withstand current lcw25kA
Version as maintenance-/service switchYes
Colour control elementOther
Number of poles2
Number of auxiliary contacts as normally closed contact1
Suitable for intermediate mountingNo
Type of control elementOther
InterlockableNo
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Height160mm
Degree of protection (NEMA)Other
Width230mm
Degree of protection (IP), front sideIP20
Depth345mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
