Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width137mm
Number of auxiliary contacts as normally closed contact0
Depth155mm
Height115mm
Number of poles3
Width in number of modular spacings6
Conditioned rated short-circuit current Iq50kA
Rated operating voltage690 - 690V
Number of switches1
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-3, 400 V0kW
InterlockableNo
Type of control elementShort thumb-grip
Rated permanent current Iu125A
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Motor drive integratedNo
Version as maintenance-/service switchYes
Colour control elementBlack
Rated short-time withstand current lcw2.5kA
Suitable for floor mountingYes
Version as safety switchNo
Rated operation power at AC-23, 400 V30kW
Version as main switchYes
Suitable for distribution board installationYes
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V125A
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Motor drive optionalNo
Switching power at 400 V0kW
Rated permanent current at AC-23, 400 V66A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

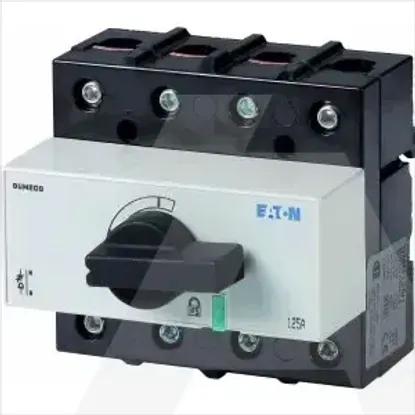

DMM-125/3
