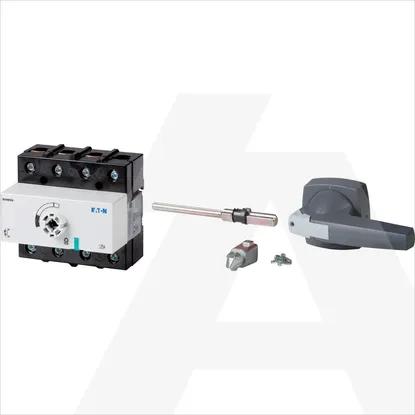

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Width137mm
Number of auxiliary contacts as normally closed contact0
Depth155mm
Rated permanent current Iu125A
Number of poles4
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V0kW
Number of switches1
Conditioned rated short-circuit current Iq50kA
Width in number of modular spacings6
Height115mm
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Version as safety switchNo
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Rated short-time withstand current lcw2.5kA
Colour control elementGrey
Motor drive integratedNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V30kW
Version as emergency stop installationNo
Version as main switchYes
InterlockableYes
Suitable for intermediate mountingYes
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Switching power at 400 V0kW
Motor drive optionalNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Rated permanent current at AC-21, 400 V125A
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V66A
Degree of protection (NEMA)Other
Voltage release optionalNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DMM-125/4/M4/P-G
