Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-3, 400 V0kW
Number of poles4
Number of auxiliary contacts as change-over contact0
Width137mm
Height115mm
Number of switches1
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
InterlockableYes
Motor drive integratedNo
Rated permanent current Iu125A
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings6
Depth155mm
Rated operation power at AC-23, 400 V30kW
Version as maintenance-/service switchYes
Version as emergency stop installationYes
Type of control elementLong turning handle
Version as safety switchNo
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Rated short-time withstand current lcw2.5kA
Voltage release optionalNo
Colour control elementRed
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V0kW
Rated permanent current at AC-23, 400 V66A
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V125A
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Motor drive optionalNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

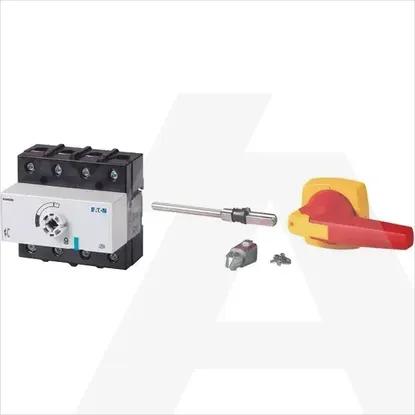

DMM-125/4/M4/P-R
