Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width137mm
Rated permanent current Iu160A
Number of poles4
Degree of protection (IP), front sideIP20
Height115mm
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq50kA
Width in number of modular spacings6
Depth155mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Type of control elementShort thumb-grip
Version as main switchYes
InterlockableNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V75kW
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as safety switchNo
Suitable for distribution board installationYes
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Rated short-time withstand current lcw2.5kA
Colour control elementBlack
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V160A
Voltage release optionalNo
Switching power at 400 V0kW
Rated permanent current at AC-23, 400 V140A
Motor drive optionalNo
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

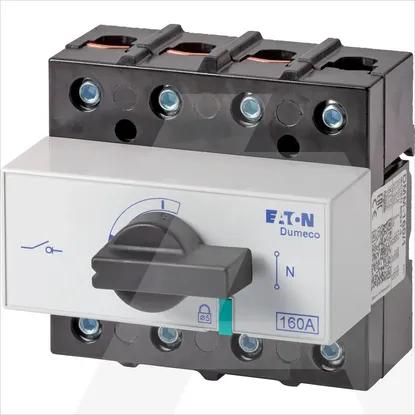

DMM-160/1
