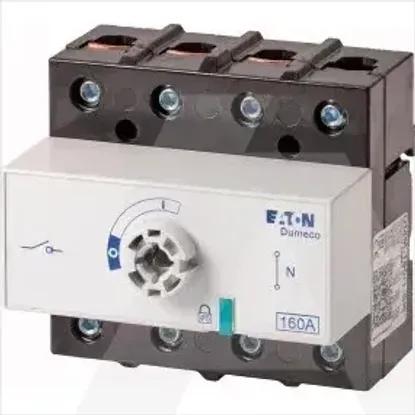

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width120mm
Depth120mm
Rated permanent current Iu160A
Height150mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Number of poles4
Rated operation power at AC-23, 400 V75kW
Width in number of modular spacings6
Version as safety switchNo
Version as main switchYes
Conditioned rated short-circuit current Iq50kA
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP20
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
InterlockableNo
Type of control elementOther
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Number of switches1
Motor drive integratedNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Rated short-time withstand current lcw2.5kA
Colour control elementOther
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V140A
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V160A
With pre-assembled cablingNo
Version as reversing switchNo
Degree of protection (NEMA)Other
Device constructionBuilt-in device fixed built-in technique
