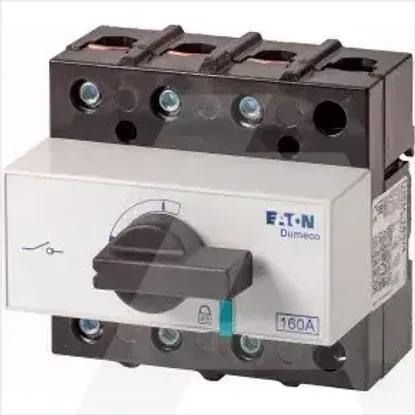

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height115mm
Width137mm
Depth155mm
Degree of protection (IP), front sideIP20
Width in number of modular spacings6
Rated permanent current Iu160A
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V0kW
Suitable for floor mountingYes
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Number of poles3
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V75kW
InterlockableNo
Type of control elementShort thumb-grip
Suitable for front mounting centreNo
Rated short-time withstand current lcw2.5kA
Motor drive integratedNo
Version as emergency stop installationNo
Number of switches1
Version as main switchYes
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V0kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V160A
Suitable for intermediate mountingYes
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Degree of protection (NEMA)Other
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V140A
