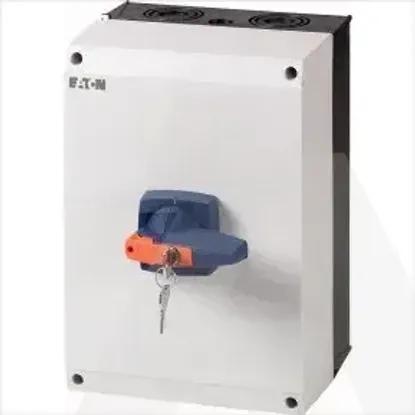

DMM-160/3/I5/C-B
Code: 1634335
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as main switchYes
Rated permanent current at AC-21, 400 V160A
Version as safety switchNo
Rated short-time withstand current lcw2.5kA
Rated permanent current at AC-23, 400 V140A
Rated operating voltage690 - 690V
Version as reversing switchNo
Switching power at 400 V0kW
Conditioned rated short-circuit current Iq50kA
Rated permanent current Iu160A
Rated operation power at AC-23, 400 V80kW
Number of switches1
Rated operation power at AC-3, 400 V0kW
Max. rated operation voltage Ue AC690V
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Suitable for intermediate mountingNo
With pre-assembled cablingNo
InterlockableYes
Degree of protection (NEMA)12
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Depth280mm
Suitable for floor mountingYes
Width200mm
Voltage release optionalNo
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationNo
Degree of protection (IP), front sideIP65
Device constructionComplete device in housing
Type of control elementShort thumb-grip
Number of poles3
Suitable for front mounting centreNo
Colour control elementOther
Height200mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DMM-160/3/I5/C-B
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Version as maintenance-/service switch
Version as emergency stop installation
Version as main switch
Rated permanent current at AC-21, 400 V
160A
Version as safety switch
Rated short-time withstand current lcw
2.5kA
Rated permanent current at AC-23, 400 V
140A
Rated operating voltage
690 .. 690V
Version as reversing switch
Switching power at 400 V
0kW
Conditioned rated short-circuit current Iq
50kA
Rated permanent current Iu
160A
Rated operation power at AC-23, 400 V
80kW
Number of switches
1
Rated operation power at AC-3, 400 V
0kW
Max. rated operation voltage Ue AC
690V
Number of auxiliary contacts as normally open contact
0
Motor drive optional
Number of auxiliary contacts as change-over contact
0
Suitable for intermediate mounting
With pre-assembled cabling
Interlockable
Degree of protection (NEMA)
12
Suitable for front mounting 4-hole
Motor drive integrated
Number of auxiliary contacts as normally closed contact
0
Depth
280mm
Suitable for floor mounting
Width
200mm
Voltage release optional
Type of electrical connection of main circuit
Screw connection
Suitable for distribution board installation
Degree of protection (IP), front side
IP65
Device construction
Complete device in housing
Type of control element
Short thumb-grip
Number of poles
3
Suitable for front mounting centre
Colour control element
Other
Height
200mm
