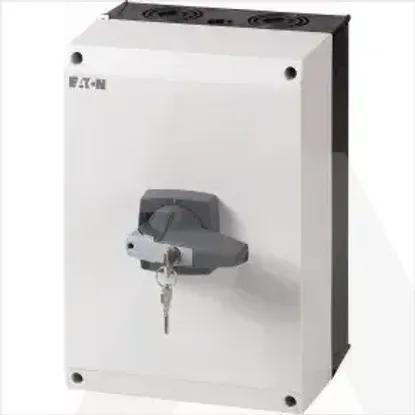

DMM-160/3/I5/C-G
Code: 1634336
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Rated operating voltage690 - 690V
Max. rated operation voltage Ue AC690V
Version as main switchYes
Rated operation power at AC-3, 400 V0kW
Rated permanent current at AC-23, 400 V140A
Rated operation power at AC-23, 400 V80kW
Number of switches1
Rated short-time withstand current lcw2.5kA
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq50kA
Number of poles3
Version as safety switchNo
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V160A
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
InterlockableYes
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Suitable for distribution board installationNo
Width200mm
Height200mm
Depth280mm
Device constructionComplete device in housing
Switching power at 400 V0kW
Suitable for front mounting centreNo
Colour control elementGrey
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DMM-160/3/I5/C-G
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Version as maintenance-/service switch
Rated operating voltage
690 .. 690V
Max. rated operation voltage Ue AC
690V
Version as main switch
Rated operation power at AC-3, 400 V
0kW
Rated permanent current at AC-23, 400 V
140A
Rated operation power at AC-23, 400 V
80kW
Number of switches
1
Rated short-time withstand current lcw
2.5kA
Rated permanent current Iu
160A
Conditioned rated short-circuit current Iq
50kA
Number of poles
3
Version as safety switch
Version as emergency stop installation
Rated permanent current at AC-21, 400 V
160A
Number of auxiliary contacts as normally closed contact
0
Motor drive optional
Motor drive integrated
Number of auxiliary contacts as change-over contact
0
Voltage release optional
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
Suitable for front mounting 4-hole
Suitable for floor mounting
Interlockable
Suitable for intermediate mounting
With pre-assembled cabling
Suitable for distribution board installation
Width
200mm
Height
200mm
Depth
280mm
Device construction
Complete device in housing
Switching power at 400 V
0kW
Suitable for front mounting centre
Colour control element
Grey
Type of control element
Short thumb-grip
Degree of protection (NEMA)
12
Degree of protection (IP), front side
IP65
Type of electrical connection of main circuit
Screw connection
