Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Width200mm
Depth280mm
Number of auxiliary contacts as normally closed contact0
Type of control elementShort thumb-grip
Height200mm
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Version as main switchYes
Number of poles3
InterlockableYes
Number of auxiliary contacts as change-over contact0
Number of switches1
Rated operation power at AC-3, 400 V0kW
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq50kA
Motor drive integratedNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw2.5kA
Version as safety switchNo
Rated operation power at AC-23, 400 V80kW
Rated permanent current at AC-21, 400 V160A
Suitable for floor mountingYes
Colour control elementRed
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V140A
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting centreNo
Motor drive optionalNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Switching power at 400 V0kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

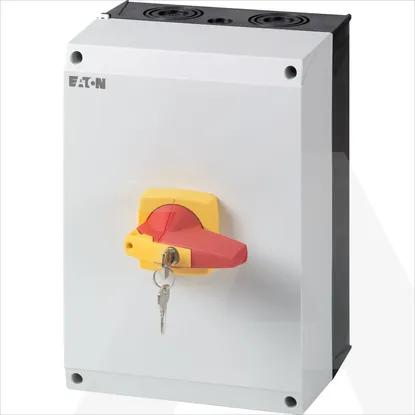

DMM-160/3/I5/C-R
