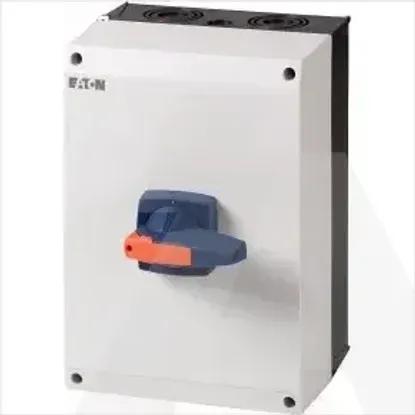

DMM-160/3/I5/P-B
Code: 1634338
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as safety switchNo
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Rated operating voltage690 - 690V
Version as reversing switchNo
Rated permanent current at AC-21, 400 V160A
Max. rated operation voltage Ue AC690V
Number of switches1
Conditioned rated short-circuit current Iq50kA
Switching power at 400 V0kW
Rated operation power at AC-3, 400 V0kW
Rated operation power at AC-23, 400 V80kW
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingYes
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Device constructionComplete device in housing
Number of auxiliary contacts as normally open contact0
Number of poles3
Rated short-time withstand current lcw2.5kA
Voltage release optionalNo
Suitable for front mounting centreNo
Rated permanent current Iu160A
Suitable for distribution board installationNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Type of control elementShort thumb-grip
InterlockableYes
Type of electrical connection of main circuitScrew connection
Rated permanent current at AC-23, 400 V140A
Colour control elementOther
Degree of protection (NEMA)12
Height200mm
Depth280mm
Width200mm
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
