Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Width200mm
Degree of protection (IP), front sideIP65
InterlockableYes
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq50kA
Height200mm
Number of poles3
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Rated operation power at AC-3, 400 V0kW
Number of switches1
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally open contact0
Depth280mm
Rated operating voltage690 - 690V
Version as emergency stop installationYes
Type of control elementShort thumb-grip
Version as main switchYes
Version as maintenance-/service switchYes
Colour control elementRed
Rated operation power at AC-23, 400 V80kW
Rated short-time withstand current lcw2.5kA
Suitable for floor mountingYes
Suitable for front mounting centreNo
Motor drive optionalNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V140A
Voltage release optionalNo
Rated permanent current at AC-21, 400 V160A
Version as reversing switchNo
Version as safety switchNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)12
Switching power at 400 V0kW
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Device constructionComplete device in housing
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

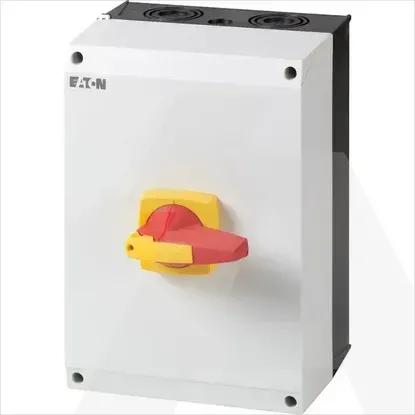

DMM-160/3/I5/P-R
