Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth155mm
Height115mm
Width137mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings6
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq50kA
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationYes
Motor drive integratedNo
Colour control elementRed
Type of electrical connection of main circuitScrew connection
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw2.5kA
Type of control elementLong turning handle
InterlockableYes
Suitable for distribution board installationNo
Number of switches1
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Suitable for intermediate mountingYes
Version as safety switchNo
Version as main switchYes
Rated operation power at AC-23, 400 V75kW
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V0kW
Voltage release optionalNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V160A
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V140A
With pre-assembled cablingNo
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

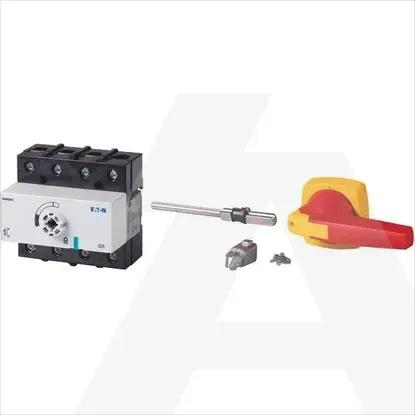

DMM-160/3/M4/P-R
