Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width120mm
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings6
Rated permanent current Iu160A
Height150mm
Number of switches1
InterlockableNo
Number of poles3
Rated operation power at AC-3, 400 V0kW
Type of electrical connection of main circuitScrew connection
Depth120mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Version as safety switchNo
Suitable for floor mountingYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V75kW
Colour control elementOther
Rated short-time withstand current lcw2.5kA
Version as maintenance-/service switchYes
Type of control elementOther
Motor drive integratedNo
Version as main switchYes
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Motor drive optionalNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V140A
Suitable for intermediate mountingYes
Version as reversing switchNo
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V160A
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

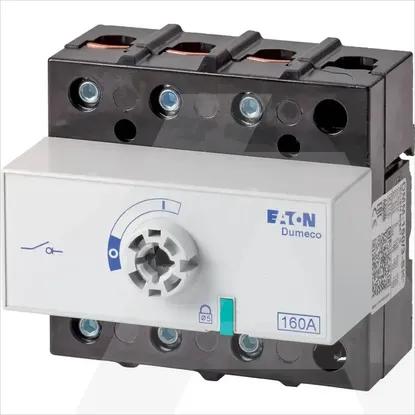

DMM-160/3-SK
