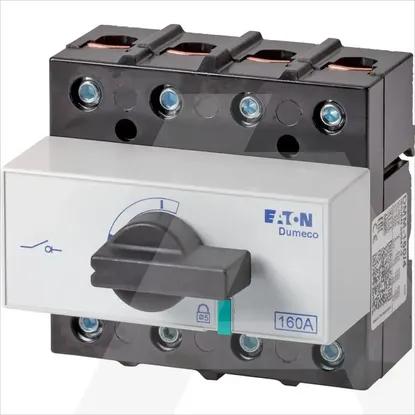

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Rated permanent current Iu160A
Rated operating voltage690 - 690V
Depth155mm
Width137mm
Number of poles4
Number of auxiliary contacts as normally open contact0
Height115mm
Version as main switchYes
Number of switches1
Width in number of modular spacings6
Suitable for front mounting centreNo
Degree of protection (IP), front sideIP20
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw2.5kA
Version as safety switchNo
Device constructionBuilt-in device fixed built-in technique
InterlockableNo
Type of electrical connection of main circuitScrew connection
Motor drive optionalNo
Suitable for floor mountingYes
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchYes
Voltage release optionalNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq50kA
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V75kW
Suitable for intermediate mountingYes
Colour control elementBlack
Number of auxiliary contacts as change-over contact0
Version as reversing switchNo
Rated permanent current at AC-23, 400 V140A
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V160A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DMM-160/4
