Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Height200mm
Conditioned rated short-circuit current Iq50kA
InterlockableYes
Width200mm
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V0kW
Rated permanent current Iu160A
Degree of protection (IP), front sideIP65
Number of switches1
Number of auxiliary contacts as change-over contact0
Number of poles4
Depth280mm
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Version as main switchYes
Version as maintenance-/service switchYes
Colour control elementOther
Version as safety switchNo
Motor drive optionalNo
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V160A
Rated short-time withstand current lcw2.5kA
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V140A
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V80kW
Degree of protection (NEMA)12
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

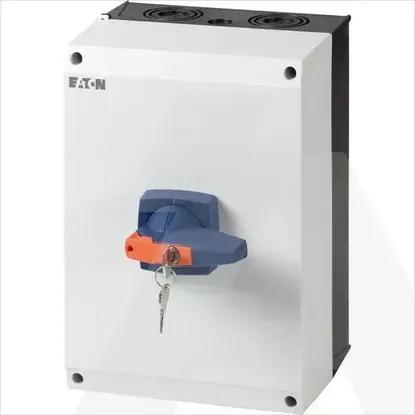

DMM-160/4/I5/C-B
