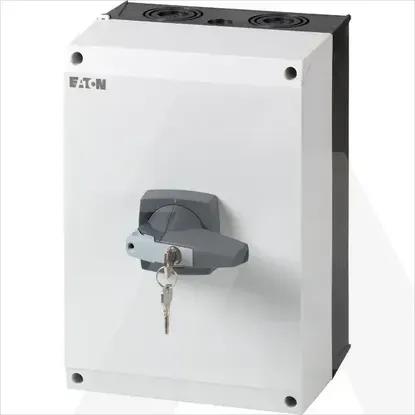

DMM-160/4/I5/C-G
Code: 1634352
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as safety switchNo
Version as main switchYes
Max. rated operation voltage Ue AC690V
Number of switches1
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V160A
Rated permanent current at AC-23, 400 V140A
Rated permanent current Iu160A
Rated operation power at AC-3, 400 V0kW
Switching power at 400 V0kW
Number of poles4
Rated operation power at AC-23, 400 V80kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Suitable for floor mountingYes
Conditioned rated short-circuit current Iq50kA
Rated short-time withstand current lcw2.5kA
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Colour control elementGrey
Suitable for front mounting centreNo
Type of control elementShort thumb-grip
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
InterlockableYes
Degree of protection (IP), front sideIP65
Width200mm
Height200mm
Device constructionComplete device in housing
Degree of protection (NEMA)12
Depth280mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
