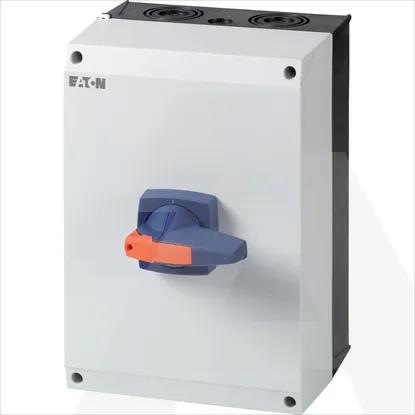

DMM-160/4/I5/P-B
Code: 1634354
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as safety switchNo
Version as reversing switchNo
Number of switches1
Rated operating voltage415 - 690V
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V140A
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-3, 400 V0kW
Number of poles4
Switching power at 400 V0kW
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Type of control elementShort thumb-grip
Height200mm
Rated short-time withstand current lcw2.5kA
Rated permanent current Iu160A
Rated permanent current at AC-21, 400 V160A
Rated operation power at AC-23, 400 V80kW
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
InterlockableYes
Suitable for front mounting centreNo
Colour control elementOther
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Width200mm
Depth280mm
Degree of protection (NEMA)12
Suitable for front mounting 4-holeNo
