Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Width200mm
Height200mm
Depth280mm
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu160A
Number of poles4
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq50kA
Material housingPlastic
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V80kW
Rated short-time withstand current lcw2.5kA
Colour control elementGrey
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Voltage release optionalNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V160A
Switching power at 400 V0kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V140A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Suitable for floor mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

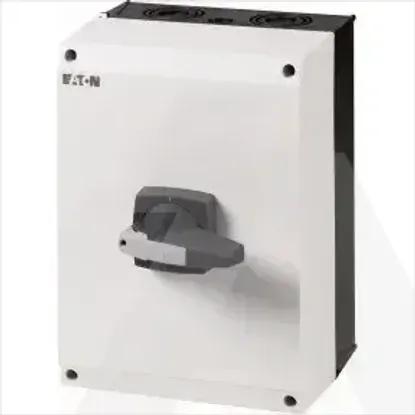

DMM-160/4/I5/P-G
