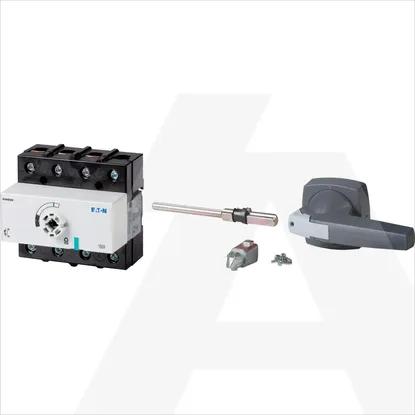

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Height115mm
Rated operation power at AC-3, 400 V0kW
Width137mm
Number of auxiliary contacts as normally open contact0
Depth155mm
Rated permanent current Iu160A
Degree of protection (IP), front sideIP20
Number of poles4
Rated operating voltage415 - 690V
Conditioned rated short-circuit current Iq50kA
Width in number of modular spacings6
Version as safety switchNo
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Version as main switchYes
Rated short-time withstand current lcw2.5kA
Suitable for intermediate mountingYes
InterlockableYes
Number of switches1
Suitable for floor mountingYes
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Colour control elementGrey
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Motor drive optionalNo
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V160A
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-23, 400 V75kW
Rated permanent current at AC-23, 400 V140A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DMM-160/4/M4/P-G
