Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Depth155mm
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationYes
Number of poles4
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-3, 400 V0kW
Motor drive integratedNo
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Rated permanent current Iu160A
Version as main switchYes
Rated operating voltage690 - 690V
Width137mm
Height115mm
Width in number of modular spacings6
Version as safety switchNo
Number of switches1
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP20
Rated operation power at AC-23, 400 V75kW
Colour control elementRed
Rated short-time withstand current lcw2.5kA
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V160A
Suitable for distribution board installationNo
Motor drive optionalNo
Rated permanent current at AC-23, 400 V140A
Degree of protection (NEMA)Other
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Switching power at 400 V0kW
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

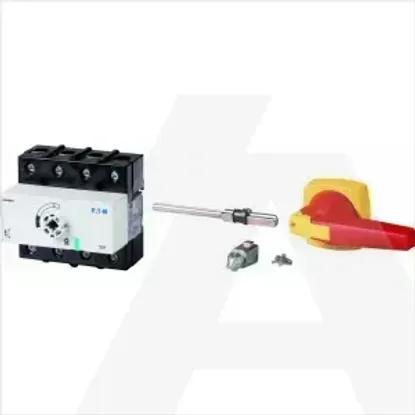

DMM-160/4/M4/P-R
