Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth120mm
Number of auxiliary contacts as normally closed contact0
Width120mm
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq50kA
Degree of protection (IP), front sideIP20
Number of poles4
Width in number of modular spacings6
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu160A
Rated operating voltage690 - 690V
Height150mm
Rated operation power at AC-3, 400 V0kW
Number of switches1
Version as maintenance-/service switchYes
InterlockableNo
Rated permanent current at AC-21, 400 V160A
Suitable for distribution board installationYes
Suitable for intermediate mountingYes
Version as safety switchNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Type of control elementOther
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as reversing switchNo
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Colour control elementOther
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V75kW
Version as main switchYes
Rated short-time withstand current lcw2.5kA
Rated permanent current at AC-23, 400 V140A
Max. rated operation voltage Ue AC690V
Switching power at 400 V0kW
Voltage release optionalNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

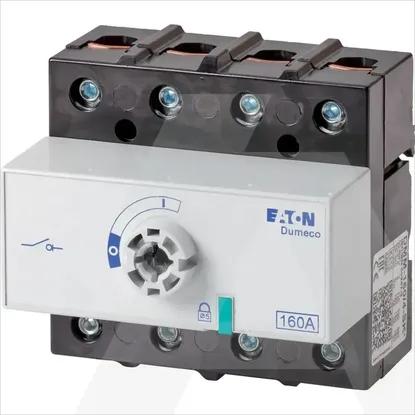

DMM-160/4-SK
