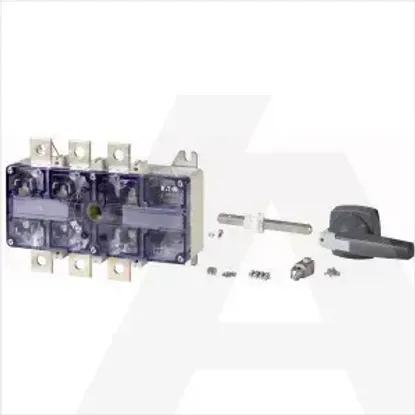

DMV-250/4/M4/P-G
Code: 1634362
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Version as safety switchNo
Rated permanent current at AC-23, 400 V250A
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Rated permanent current Iu250A
Number of switches1
Rated permanent current at AC-21, 400 V250A
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V0kW
Switching power at 400 V250kW
Rated short-time withstand current lcw12kA
Rated operation power at AC-23, 400 V250kW
Number of poles4
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Colour control elementGrey
InterlockableYes
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Suitable for front mounting 4-holeNo
Height150mm
Suitable for front mounting centreNo
Width150mm
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
Depth300mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
