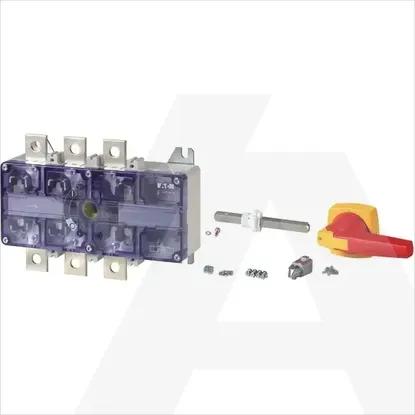

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height150mm
Depth300mm
Width150mm
Rated permanent current Iu250A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq50kA
Number of poles4
Rated operation power at AC-3, 400 V0kW
InterlockableYes
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as change-over contact0
Colour control elementRed
Rated permanent current at AC-21, 400 V250A
Motor drive optionalNo
Rated operation power at AC-23, 400 V250kW
Version as safety switchNo
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Number of switches1
Suitable for distribution board installationNo
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated short-time withstand current lcw12kA
Type of control elementShort thumb-grip
Suitable for front mounting centreNo
Degree of protection (IP), front sideIP65
Version as emergency stop installationYes
Switching power at 400 V250kW
Degree of protection (NEMA)12
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V250A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DMV-250/4/M4/P-R
