Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact1
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq0kA
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Number of poles3
Version as main switchYes
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V0kW
Number of switches1
Rated permanent current Iu2500A
Motor drive integratedNo
InterlockableYes
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Rated short-time withstand current lcw65kA
Rated operation power at AC-23, 400 V0kW
Version as safety switchNo
Colour control elementGrey
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V2500A
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V0kW
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

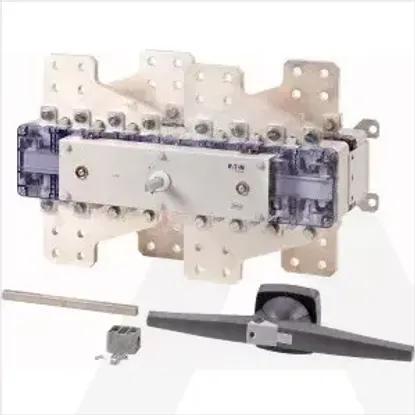

DMV-2500/3/M6/2HI11/K6-PG
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
1
Degree of protection (IP), front side
IP20
Conditioned rated short-circuit current Iq
0kA
Rated operating voltage
690 .. 690V
Number of auxiliary contacts as change-over contact
0
Number of poles
3
Version as main switch
Number of auxiliary contacts as normally open contact
1
Rated operation power at AC-3, 400 V
0kW
Number of switches
1
Rated permanent current Iu
2500A
Motor drive integrated
Interlockable
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Type of control element
Long turning handle
Version as maintenance-/service switch
Rated short-time withstand current lcw
65kA
Rated operation power at AC-23, 400 V
0kW
Version as safety switch
Colour control element
Grey
Suitable for intermediate mounting
Suitable for front mounting 4-hole
Suitable for distribution board installation
Suitable for floor mounting
Suitable for front mounting centre
Max. rated operation voltage Ue AC
690V
Motor drive optional
Version as reversing switch
Voltage release optional
Rated permanent current at AC-21, 400 V
2500A
Degree of protection (NEMA)
Other
Rated permanent current at AC-23, 400 V
-A
Switching power at 400 V
0kW
Device construction
Built-in device fixed built-in technique
