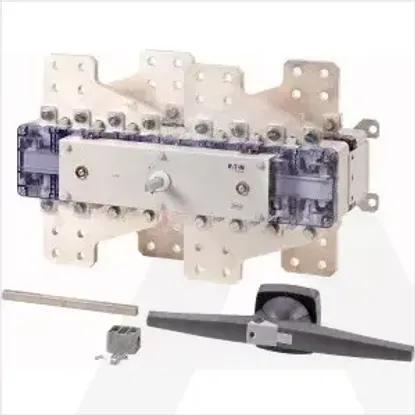

DMV-2500/4/M6/2HI11/K6-PG
Code: 1634366
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Number of switches4
Version as emergency stop installationNo
Version as safety switchNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Rated permanent current Iu2500A
Rated operation power at AC-3, 400 V0kW
Rated permanent current at AC-21, 400 V2500A
Rated short-time withstand current lcw65kA
Rated permanent current at AC-23, 400 V250A
Rated operating voltage690 - 690V
Version as maintenance-/service switchNo
Switching power at 400 V0kW
Conditioned rated short-circuit current Iq0kA
Number of poles4
Rated operation power at AC-23, 400 V1400kW
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Type of control elementLong turning handle
Colour control elementGrey
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
InterlockableYes
Number of auxiliary contacts as normally open contact1
Degree of protection (IP), front sideIP20
Suitable for floor mountingYes
With pre-assembled cablingNo
Height300mm
Degree of protection (NEMA)Other
Width380mm
Depth630mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
