Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Conditioned rated short-circuit current Iq0kA
Rated operating voltage690 - 690V
Rated permanent current Iu3150A
Number of poles3
Version as main switchYes
Motor drive integratedNo
InterlockableYes
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Number of switches1
Version as safety switchNo
Degree of protection (IP), front sideIP20
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V0kW
Motor drive optionalNo
Rated short-time withstand current lcw65kA
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Colour control elementGrey
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Rated permanent current at AC-21, 400 V3150A
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V0kW
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)Other
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

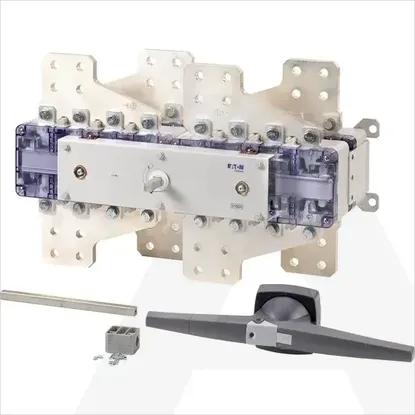

DMV-3150/3/M6/2HI11/K6-PG
