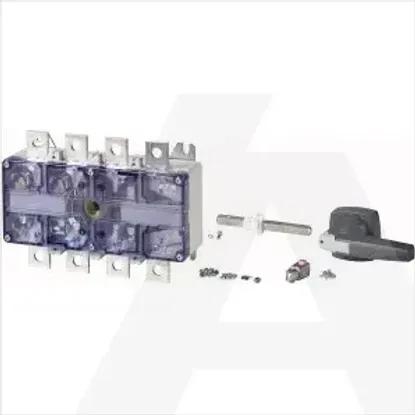

DMV-400/3/M4/P-G
Code: 1634370
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as reversing switchNo
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Number of switches1
Version as safety switchNo
Rated permanent current Iu400A
Version as emergency stop installationNo
Rated permanent current at AC-23, 400 V333A
Rated operating voltage690 - 690V
Rated short-time withstand current lcw12kA
Rated operation power at AC-3, 400 V0kW
Conditioned rated short-circuit current Iq50kA
Rated permanent current at AC-21, 400 V400A
Number of auxiliary contacts as normally open contact0
Switching power at 400 V400kW
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-23, 400 V400kW
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of poles3
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Type of control elementShort thumb-grip
Colour control elementGrey
InterlockableYes
Type of electrical connection of main circuitScrew connection
Width150mm
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Height150mm
Depth300mm
