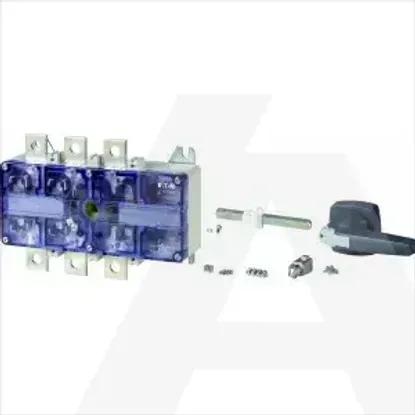

DMV-400/4/M4/P-G
Code: 1634372
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Version as emergency stop installationNo
Number of switches1
Rated short-time withstand current lcw12kA
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current at AC-21, 400 V400A
Motor drive optionalNo
Conditioned rated short-circuit current Iq50kA
Rated permanent current at AC-23, 400 V333A
Suitable for floor mountingYes
Rated operating voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Suitable for intermediate mountingYes
Rated operation power at AC-3, 400 V0kW
Rated permanent current Iu400A
Rated operation power at AC-23, 400 V400kW
Colour control elementGrey
Switching power at 400 V400kW
Number of poles4
Version as safety switchNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Type of control elementShort thumb-grip
With pre-assembled cablingNo
InterlockableYes
Degree of protection (NEMA)12
Width150mm
Height150mm
Depth300mm
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
