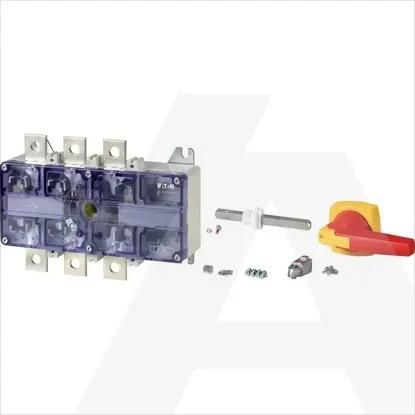

DMV-400/4/M4/P-R
Code: 1634373
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as maintenance-/service switchNo
Version as safety switchNo
Version as emergency stop installationYes
Number of switches1
Rated short-time withstand current lcw12kA
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V333A
Version as reversing switchNo
Rated operating voltage690 - 690V
Rated permanent current Iu400A
Number of poles4
Switching power at 400 V400kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V400kW
Rated operation power at AC-3, 400 V0kW
Motor drive optionalNo
Suitable for floor mountingYes
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-21, 400 V400A
Suitable for intermediate mountingYes
Colour control elementRed
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Motor drive integratedNo
Suitable for distribution board installationNo
InterlockableYes
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Voltage release optionalNo
Degree of protection (NEMA)12
Width150mm
Height150mm
Degree of protection (IP), front sideIP65
Depth300mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
