Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated current10A
Built-in depth70.5mm
Rated voltage415V
Voltage typeAC
Release characteristicC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Current limiting class3
Width in number of modular spacings3
Connectable conductor cross section multi-wired1 - 25mm²
Pollution degree2
Power loss4.5W
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Over voltage category3
Explosion-proofNo
Number of protected poles3
Number of poles (total)3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Ambient temperature during operating-25 - 75°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

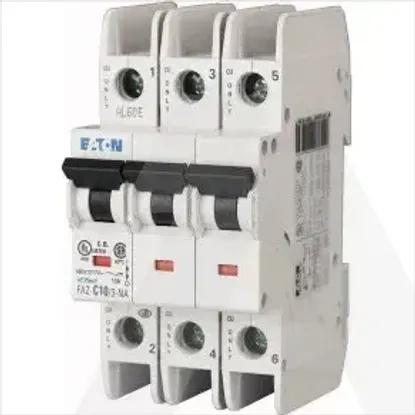

FAZ-C10/3-NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated current
10A
Built-in depth
70.5mm
Rated voltage
415V
Voltage type
AC
Release characteristic
C
Rated insulation voltage Ui
440V
Frequency
50 .. 60Hz
Current limiting class
3
Width in number of modular spacings
3
Connectable conductor cross section multi-wired
1 .. 25mm²
Pollution degree
2
Power loss
4.5W
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 .. 25mm²
Over voltage category
3
Explosion-proof
Number of protected poles
3
Number of poles (total)
3
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Ambient temperature during operating
-25 .. 75°C
Flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0kA
Rated impulse withstand voltage Uimp
4kV
