Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Built-in depth70.5mm
Number of poles (total)2
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated voltage415V
Release characteristicC
Rated current13A
Voltage typeAC
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Additional equipment possibleYes
Power loss5W
Frequency50 - 60Hz
Pollution degree2
Concurrently switching neutral conductorNo
Over voltage category3
Flush-mounted installationNo
Current limiting class3
Width in number of modular spacings2
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Explosion-proofNo
Connectable conductor cross section solid-core1 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

FAZ-C13/2-NA

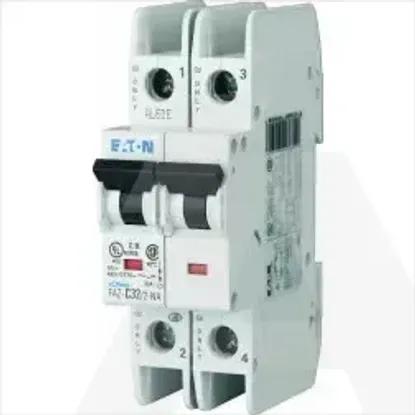

Main Product Image

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Built-in depth

70.5mm

Number of poles (total)

2

Number of protected poles

2

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Rated voltage

415V

Release characteristic

C

Rated current

13A

Voltage type

AC

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Rated insulation voltage Ui

440V

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Additional equipment possible

Power loss

5W

Frequency

50 .. 60Hz

Pollution degree

2

Concurrently switching neutral conductor

Over voltage category

3

Flush-mounted installation

Current limiting class

3

Width in number of modular spacings

2

Degree of protection (IP)

IP20

Ambient temperature during operating

-25 .. 75°C

Connectable conductor cross section multi-wired

1 .. 25mm²

Explosion-proof

Connectable conductor cross section solid-core

1 .. 25mm²
