Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Built-in depth70.5mm
Release characteristicC
Rated impulse withstand voltage Uimp4kV
Number of protected poles2
Rated insulation voltage Ui440V
Rated voltage415V
Number of poles (total)2
Rated current15A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Voltage typeAC
Power loss4W
Current limiting class3
Over voltage category3
Pollution degree2
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Width in number of modular spacings2
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

FAZ-C15/2-NA

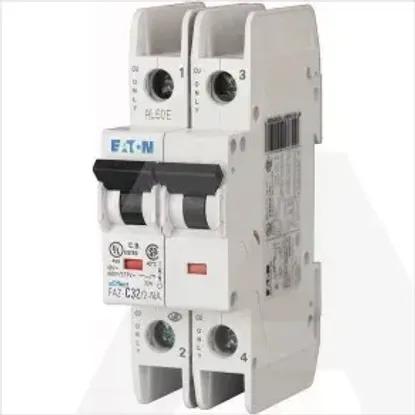

Main Product Image

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Built-in depth

70.5mm

Release characteristic

C

Rated impulse withstand voltage Uimp

4kV

Number of protected poles

2

Rated insulation voltage Ui

440V

Rated voltage

415V

Number of poles (total)

2

Rated current

15A

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Frequency

50 .. 60Hz

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Voltage type

AC

Power loss

4W

Current limiting class

3

Over voltage category

3

Pollution degree

2

Concurrently switching neutral conductor

Flush-mounted installation

Width in number of modular spacings

2

Ambient temperature during operating

-25 .. 75°C

Connectable conductor cross section multi-wired

1 .. 25mm²

Connectable conductor cross section solid-core

1 .. 25mm²

Degree of protection (IP)

IP20

Additional equipment possible

Explosion-proof
