Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Number of protected poles1
Built-in depth70.5mm
Number of poles (total)1
Release characteristicD
Rated current20A
Rated voltage240V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Current limiting class3
Flush-mounted installationNo
Power loss2.2W
Over voltage category3
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Pollution degree2
Width in number of modular spacings1
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

FAZ-D20/1-NA

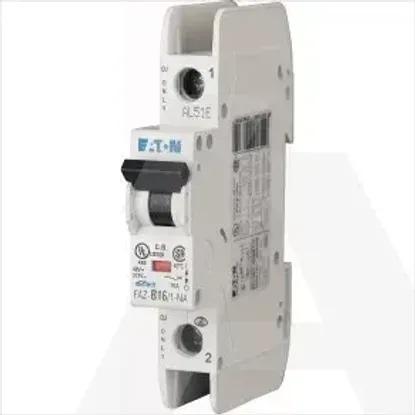

Main Product Image

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Number of protected poles

1

Built-in depth

70.5mm

Number of poles (total)

1

Release characteristic

D

Rated current

20A

Rated voltage

240V

Rated insulation voltage Ui

440V

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Voltage type

AC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Frequency

50 .. 60Hz

Current limiting class

3

Flush-mounted installation

Power loss

2.2W

Over voltage category

3

Concurrently switching neutral conductor

Additional equipment possible

Pollution degree

2

Width in number of modular spacings

1

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

1 .. 25mm²

Ambient temperature during operating

-25 .. 75°C

Connectable conductor cross section solid-core

1 .. 25mm²

Explosion-proof
