Details

  • •Circuit breakers and fuses

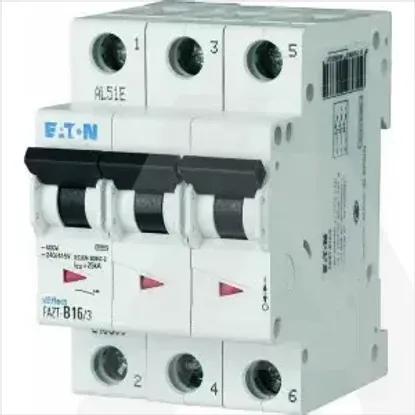

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Frequency50 - 60Hz
Voltage typeAC
Built-in depth70.5mm
Rated insulation voltage Ui440V
Rated voltage230V
Pollution degree2
Explosion-proofNo
Over voltage category3
Connectable conductor cross section solid-core1 - 25mm²
Current limiting class3
Power loss4.4W
Degree of protection (IP)IP20
Width in number of modular spacings3
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Flush-mounted installationNo
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current6A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
