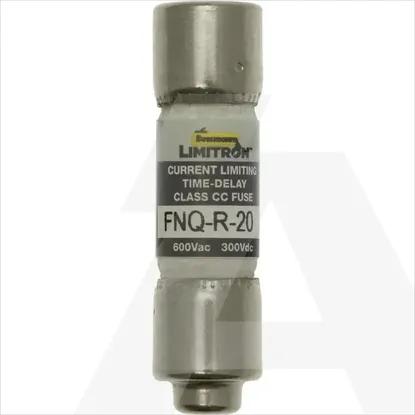

FNQ-R-20 | Fuse link CC-tron (UL standard), Class CC (time delay, Rejection-Type), 600V AC, 20.0A
Code: 1636285
ManufacturerEaton
Catalog numberFNQ-R-20
TypeCLASS CC TIME DELAY REJECTION FUSE
CategoryCylindrical fuse
EAN code5027590449717
Details
- •Circuit breakers and fuses
- •Cylindrical fuse
- •Minimum order quantity: 10 pcs
- •EATON
Technical specifications
Nominal current20A
With strikerNo
Release characteristicCC
Breaking capacity200kA
Voltage typeAC
Rated voltageOther
Rated voltage600 - 600V
Rated operating frequency45 - 62Hz
Size10x38 mm
Utilization categoryOther
