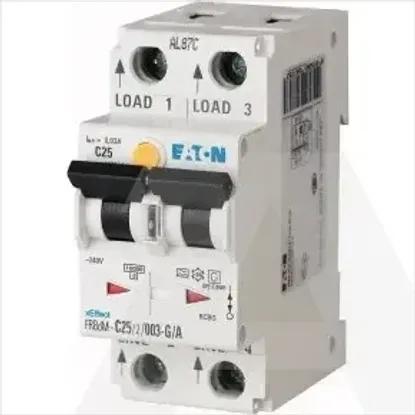

Details

  • •Circuit breakers and fuses
  • •Earth leakage circuit breaker
  • •1 KOM
  • •EATON

Technical specifications

Voltage typeAC
Built-in depth70mm
Rated insulation voltage Ui250V
Rated voltage240V
Release characteristicB
Connectable conductor cross section solid-core1 - 25mm²
Over voltage category3
Connectable conductor cross section multi-wired1 - 25mm²
Surge current capacity3kA
Degree of protection (IP)IP20
Pollution degree2
Current limiting class3
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 40°C
Width in number of modular spacings2
With interlocking deviceNo
Rated short-circuit breaking capacity according to IEC 60947-20kA
Anti-nuisance tripping versionYes
Number of protected poles2
Suitable for flush-mounted installationNo
Frequency50 Hz
Rated short-circuit breaking capacity according to EN 6100910kA
Rated impulse withstand voltage Uimp4kV
Disconnection characteristicShort-time delayed
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated current13A
Rated fault current0.01A
Leakage current typeA
Number of poles (total)2
