Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Rated voltage240V
Number of protected poles1
Rated insulation voltage Ui500V
Rated fault current0.03A
Number of poles (total)2
Current limiting class3
Rated short-circuit breaking capacity according to EN 610096kA
Leakage current typeAC
Voltage typeAC
Rated short-circuit breaking capacity according to IEC 60947-20kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp4kV
Frequency50 Hz
Concurrently switching neutral conductorYes
Rated current10A
Ambient temperature during operating-25 - 40°C
Pollution degree2
With interlocking deviceNo
Release characteristicB
Flush-mounted installationNo
Anti-nuisance tripping versionNo
Disconnection characteristicUndelayed
Surge current capacity0.25kA
Over voltage category3
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
Built-in depth75.5mm
Connectable conductor cross section solid-core1 - 25mm²
Width in number of modular spacings2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

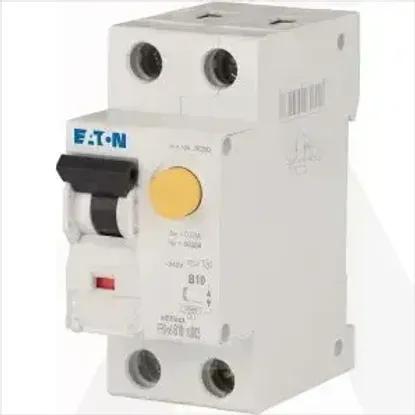

FRBm6-B10/1N/003
