Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Built-in depth75.5mm
Voltage typeAC
Current limiting class3
Release characteristicB
Width in number of modular spacings2
Surge current capacity0.25kA
Rated insulation voltage Ui500V
Rated voltage240V
Pollution degree2
Over voltage category3
Frequency50 Hz
Degree of protection (IP)IP20
With interlocking deviceNo
Rated short-circuit breaking capacity according to IEC 60947-20kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section multi-wired1 - 25mm²
Disconnection characteristicUndelayed
Rated impulse withstand voltage Uimp4kV
Concurrently switching neutral conductorYes
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
Ambient temperature during operating-25 - 40°C
Flush-mounted installationNo
Connectable conductor cross section solid-core1 - 25mm²
Number of protected poles1
Rated current25A
Rated fault current0.03A
Leakage current typeA
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

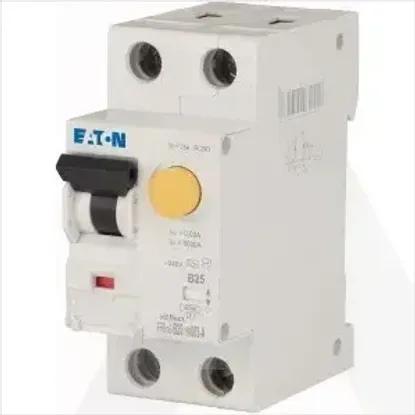

FRBm6-B25/1N/003-A
