Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Rated voltage240V
Rated current25A
Built-in depth75.5mm
Rated fault current0.03A
Rated insulation voltage Ui500V
Release characteristicB
Over voltage category3
Width in number of modular spacings2
Pollution degree2
Leakage current typeAC
Surge current capacity3kA
Current limiting class3
Frequency50 Hz
Ambient temperature during operating-25 - 40°C
With interlocking deviceNo
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity according to IEC 60947-20kA
Connectable conductor cross section solid-core1 - 25mm²
Number of protected poles1
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Anti-nuisance tripping versionYes
Number of poles (total)2
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity according to EN 610096kA
Disconnection characteristicShort-time delayed
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

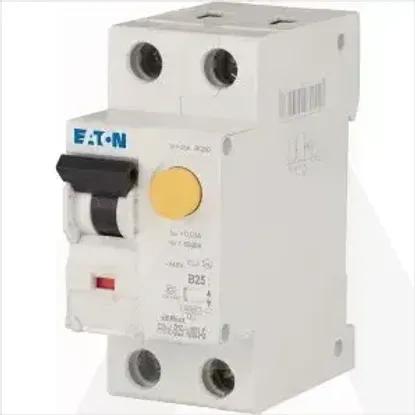

FRBm6-B25/1N/003-G
