Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Rated current25A
Surge current capacity3kA
Built-in depth75.5mm
Current limiting class3
Release characteristicB
Rated insulation voltage Ui500V
Rated voltage240V
Voltage typeAC
Leakage current typeAC
Rated fault current0.3A
With interlocking deviceNo
Connectable conductor cross section solid-core1 - 25mm²
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Width in number of modular spacings2
Number of protected poles1
Ambient temperature during operating-25 - 40°C
Flush-mounted installationNo
Rated short-circuit breaking capacity according to IEC 60947-20kA
Frequency50 Hz
Pollution degree2
Over voltage category3
Connectable conductor cross section multi-wired1 - 25mm²
Disconnection characteristicShort-time delayed
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

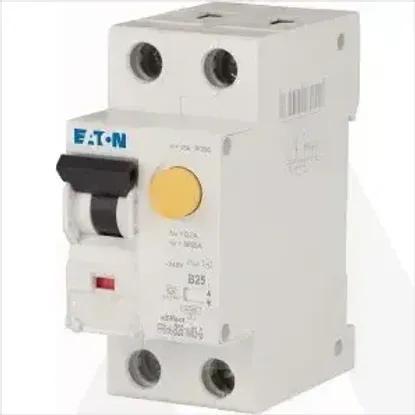

FRBm6-B25/1N/03-G
