Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Rated voltage240V
Rated insulation voltage Ui500V
Rated fault current0.3A
Rated current32A
Built-in depth75.5mm
Release characteristicB
Leakage current typeAC
Number of protected poles2
Surge current capacity0.25kA
Pollution degree2
Degree of protection (IP)IP20
Frequency50 Hz
Over voltage category3
Width in number of modular spacings2
Current limiting class3
Flush-mounted installationNo
Number of poles (total)2
Connectable conductor cross section multi-wired1 - 25mm²
With interlocking deviceNo
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 40°C
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core1 - 25mm²
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to IEC 60947-20kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Disconnection characteristicUndelayed
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

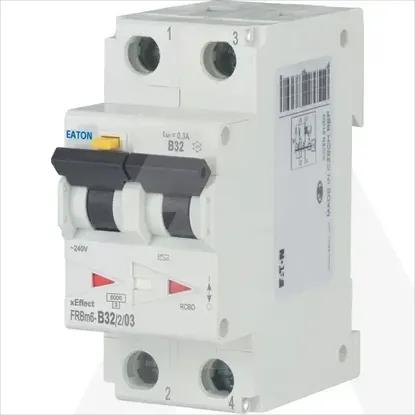

FRBm6-B32/2/03
