Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Built-in depth75.5mm
Rated fault current0.03A
Leakage current typeA
Rated insulation voltage Ui500V
Release characteristicC
Rated voltage240V
Rated current10A
Current limiting class3
Surge current capacity0.25kA
Over voltage category3
Pollution degree2
Width in number of modular spacings2
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Frequency50 Hz
Number of protected poles2
Rated short-circuit breaking capacity according to IEC 60947-20kA
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Ambient temperature during operating-25 - 40°C
With interlocking deviceNo
Anti-nuisance tripping versionNo
Flush-mounted installationNo
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Disconnection characteristicShort-time delayed
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

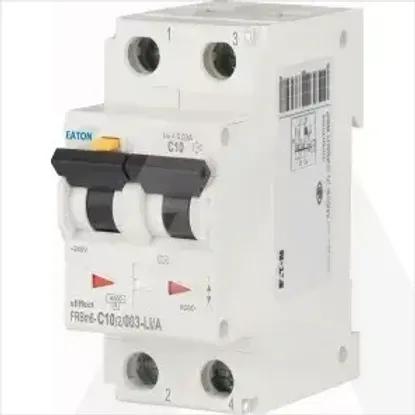

FRBm6-C10/2/003-LIA
