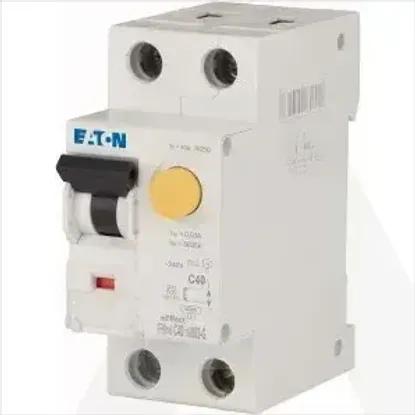

Details

  • •Circuit breakers and fuses
  • •Earth leakage circuit breaker
  • •1 KOM
  • •EATON

Technical specifications

Voltage typeAC
Current limiting class3
Width in number of modular spacings2
Surge current capacity3kA
Rated voltage240V
Frequency50 Hz
Release characteristicC
Rated insulation voltage Ui500V
Built-in depth75.5mm
Over voltage category3
Degree of protection (IP)IP20
Pollution degree2
Ambient temperature during operating-25 - 40°C
Rated short-circuit breaking capacity according to IEC 60947-20kA
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core1 - 25mm²
Disconnection characteristicShort-time delayed
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Number of protected poles1
Connectable conductor cross section multi-wired1 - 25mm²
Flush-mounted installationNo
With interlocking deviceNo
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionYes
Rated current40A
Rated fault current0.03A
Leakage current typeAC
Number of poles (total)2
