Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Pollution degree2
Degree of protection (IP)IP20
Width in number of modular spacings2
Over voltage category3
Rated voltage240V
Voltage typeAC
Release characteristicC
With interlocking deviceNo
Current limiting class3
Rated insulation voltage Ui500V
Leakage current typeA
Connectable conductor cross section solid-core1 - 25mm²
Frequency50 Hz
Connectable conductor cross section multi-wired1 - 25mm²
Surge current capacity0.25kA
Number of protected poles1
Rated short-circuit breaking capacity according to IEC 60947-215kA
Rated current4A
Rated fault current0.1A
Built-in depth75.5mm
Flush-mounted installationNo
Concurrently switching neutral conductorYes
Ambient temperature during operating-25 - 40°C
Number of poles (total)2
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp4kV
Disconnection characteristicUndelayed
Rated short-circuit breaking capacity according to EN 6100910kA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

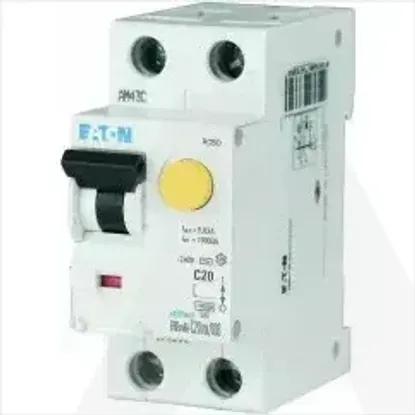

FRBmM-C4/1N/01-A
