Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Built-in depth75.5mm
Voltage typeAC
Rated voltage240V
Release characteristicC
Rated current40A
Width in number of modular spacings2
Leakage current typeAC
Pollution degree2
Surge current capacity0.25kA
Current limiting class3
Rated fault current0.3A
Over voltage category3
Rated insulation voltage Ui500V
Frequency50 Hz
Anti-nuisance tripping versionNo
Flush-mounted installationNo
Concurrently switching neutral conductorYes
Disconnection characteristicUndelayed
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 6100910kA
Connectable conductor cross section multi-wired1 - 25mm²
Number of protected poles1
Rated short-circuit breaking capacity according to IEC 60947-210kA
With interlocking deviceNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Connectable conductor cross section solid-core1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 40°C
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

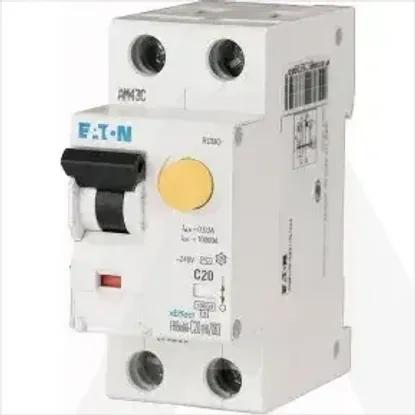

FRBmM-C40/1N/03
